Thermodynamic Steam Traps

Kode	:	-
Berat	:	300 gram
Stok	:	Ready Stock
Kondisi	:	Baru
Kategori	:	AAA
Dilihat	:	839 kali
Review	:	Belum ada review

Hubungi kami secara langsung untuk pemesanan yang lebih cepat!

Thermodynamic Steam Traps

*Pemesanan dapat langsung menghubungi kontak di bawah ini:

*Harga Hubungi CS

Ready Stock

INFO HARGA
Silahkan menghubungi kontak kami untuk mendapatkan informasi harga produk ini.

Bagikan informasi tentang Thermodynamic Steam Traps kepada teman atau kerabat Anda.

Deskripsi Thermodynamic Steam Traps

Thermodynamic steam traps operate on the basis of the Bernoulli principle, depending on the relationship between the velocity and the pressure exerted by the condensate and steam inside the steam trap. They have only one moving part – the disc.
Due to their compact design and cost effectiveness thermodynamic steam traps are widely used in applications where the condensate must be removed immediately from steam lines and steam equipment. They discharge the condensate near the saturation temperature.

The traps may operate up to a back pressure of 80% of the inlet pressure, but for smooth operation it is recommended that the back pressure does not exceed 50% of the inlet pressure. Thermodynamic steam traps discharge the condensate intermittently.
All steam traps are equipped with a hardened stainless steel disc and seat. After the lapping process all disc surfaces are controlled individually before releasing them for use in steam traps. These features and very high and severe quality standards for the whole production process give MIYAWAKI`s thermodynamic steam traps a long and reliable service life.

Types:

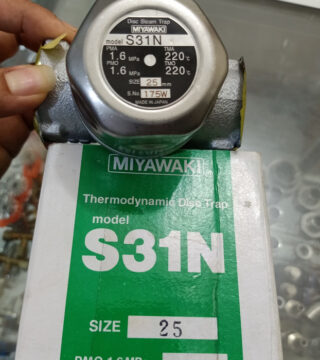

	S31N		Ductile Cast Iron Steam Traps with replaceable internals
	SC,SF		Cast Iron Steam Traps for high capacity
	SC31		Stainless Steel Steam Traps with replaceable internals
	SD1, SU2N, SU2H		Stainless Steel Steam Traps for low to high pressure applications
	S55N, S61N, S62N		Forged Steel Steam Traps for high pressure applications
	SV		Steam Traps with inbuilt bypass
	SL3		Compact, very small trap for low capacity applications

Features

Immediate discharge of condensate
Insensitive to waterhammer, superheated steam and freezing
Most types contain a bimetal ring which improves the ability of the trap to discharge air and cold condensate quickly at start-up and prevents air locking during times of operation
Can be installed in any position
In case of danger of air locking special discs available
All traps equipped with additional cover for reduced frequency of cycling and energy savings
All traps with inbuilt strainers (except SL3)
Easy maintenance

Suitable for:

light to medium condensate loads: steam tracing, steam main drips, small heat exchangers, unit heaters, sterilizers and many other applications in the petrochemical, chemical, textile, food, pharmaceutical and further industries.

Series SV Thermodynamic steam traps with inbuilt bypass are designed for special applications in the food, pharmaceutical or other industries or for laundry applications where costs and space must be saved.
